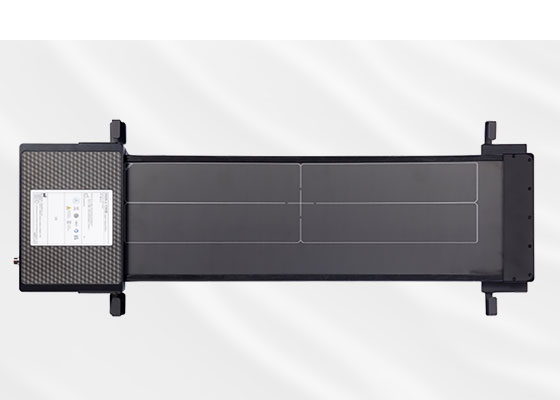

VIVIX-V 1043B

Bendable X-ray Detector for Larger Pipe Inspection

images

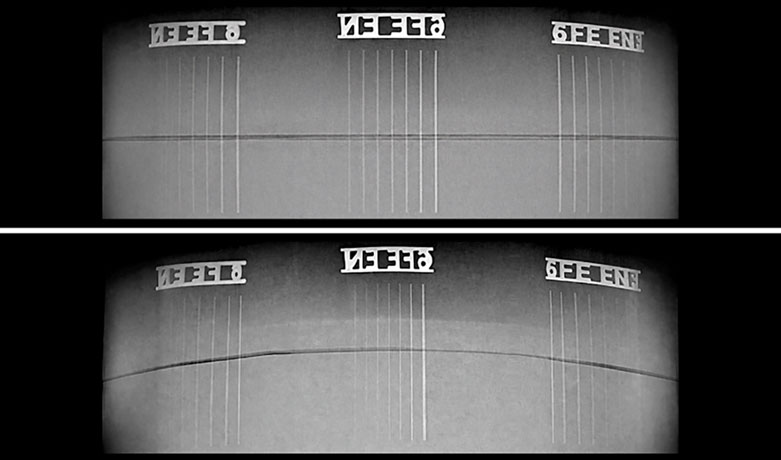

Exceptional Imaging Precision

  • Superior image resolution (99-micrometer pixel pitch, Class B achieved)
  • Minimized image distortion
  • Reduced dead zones for increased accuracy
  • Expansive quantization depth (16 bits)

Flexible Solution for Broad Inspection Needs

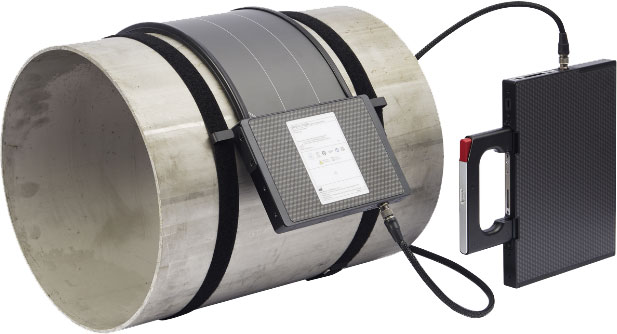

  • Superseding traditional film inspection with innovative bending mechanism

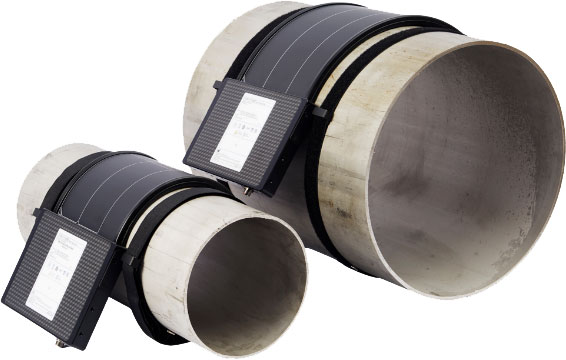

  • Cover a wide range of pipe sizes (minimum 6-inch pipe)
  • Applicable for both front and rear pipe exposures
  • Extensive customization options to meet specific inspection requirements
images

Tough Terrain Performance

  • High dust and water resistance (IP67)
  • Broad energy range accommodating up to 450 kVp
  • Excellent temperature stability for consistent results
  • Unique hardware design to reduce sensor replacements
images

High Energy

  • X-ray Voltage Range : 40 kVp - 450 kVp
  • Max. Exposure Time : 180 sec.
  • pictogram

    Aerospace & Defense

  • pictogram

    Shipyard

  • pictogram

    Construction

  • pictogram

    Oil & Gas

  • pictogram

    Energy & Power

  • pictogram

    EOD (Explosive Ordnance Disposal)

  • pictogram

    IED (Improvised Explosive Device)

  • pictogram

    Special Forces

Specifications arrow
Model Name VXTD-1043DBB
Technology Flexible a-Si TFT
Scintillator Gadox
Pixel Pitch 99 ㎛
Pixel Matrix 981 x 4309 pixels
Image Size 97.119㎜ × 426.591 ㎜
Grayscale 16 bits
X-ray Voltage Range 40 kVp - 450 kVp
Maximum Exposure Time 180 s
X-ray Generator Interface External Line Trigger Automatic Exposure Detection
Data Interface PoE Gigabit Ethernet(1000BASE-T) IEEE 802.11n/ac
Image Acquisition Time Wired: 1.5 s Wireless: 3 s
Weight 1.65 kg
Battery 5.5 h (capturing) 6 h (standby)
Dust and Water Resistant IP67
Bezel Size 10 ㎜ (long sides), Tolerence: 0.5mm
Power Consumption DC 24 V, 1.0A (AC-DC adaptor)
* Specifications are subject to change without prior notice.
